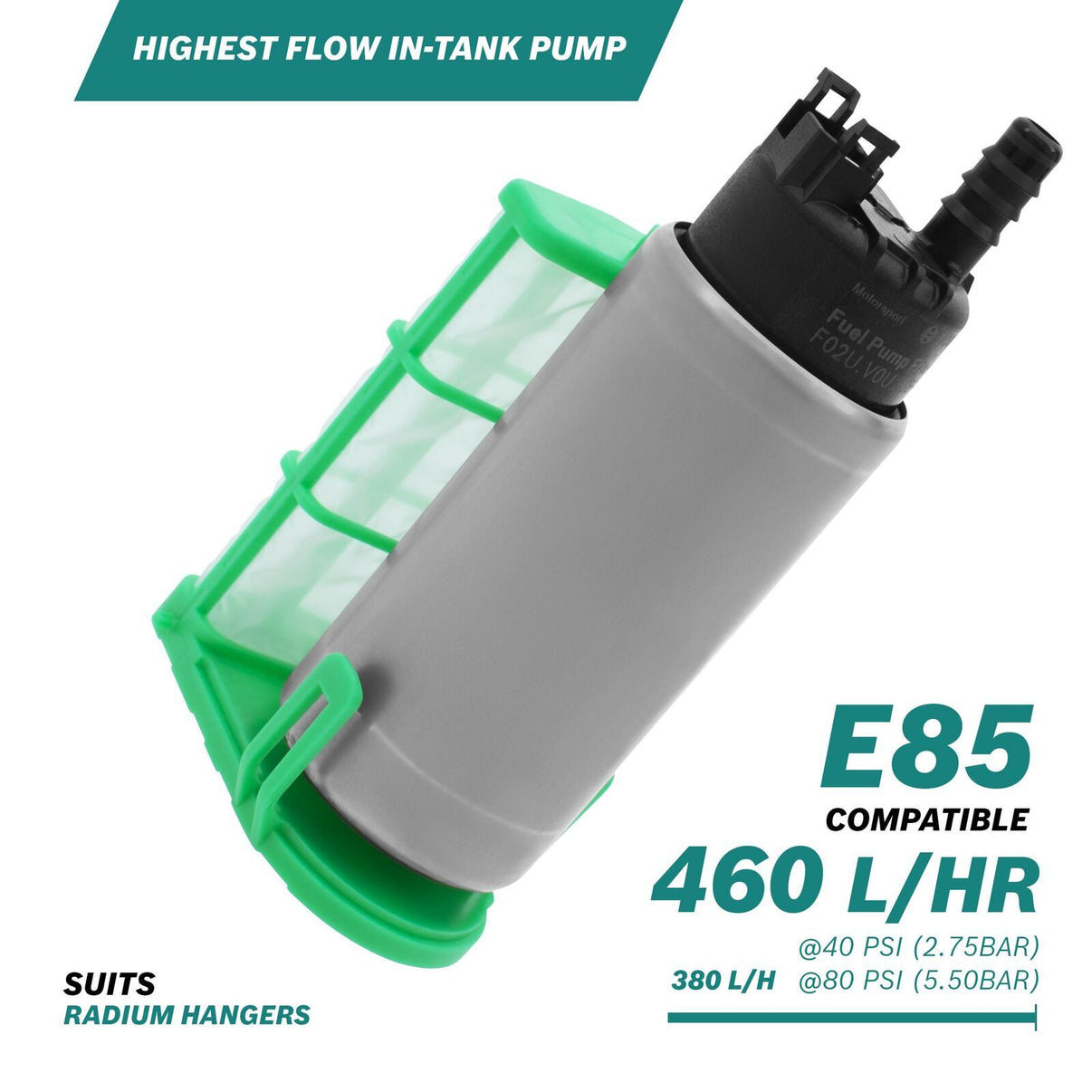

Bosch - FPx-HF - In-tank Fuel Pump. Up to 540 l/h (BR540) F02UV0U343-01

Specifically released by Bosch Motorsport (FPx-HF, F 02U V0U 343-01) and ONLY available direct or through Bosch Motorsport stockists

Highest flowing Bosch in-tank fuel pump available!!

Up to 540 l/h @ open flow
Up to 460 l/h @ 40Psi (2.75bar)
Up to 380 l/h @ 80Psi (5.5bar)
An amazing 270l/h @ 145Psi (10.0bar)
High flow all the way up to the 190Psi (13.0bar) Pressure Relief Valve setting
9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose
Light weight (550g) and Compact 46mm body size
Includes electrical connector with wires
Includes High flow filter
Draws ~16A @ 40Psi (2.75bar), ~19A @ 80Psi (5.5bar), ~24A @ 145Psi (10.0bar)

NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump. This pump has been released by Bosch Motorsport only for motorsport/offroad applications.

Application and model suitability:

Generic use
Custom applications
May require custom fittings & adaptors
