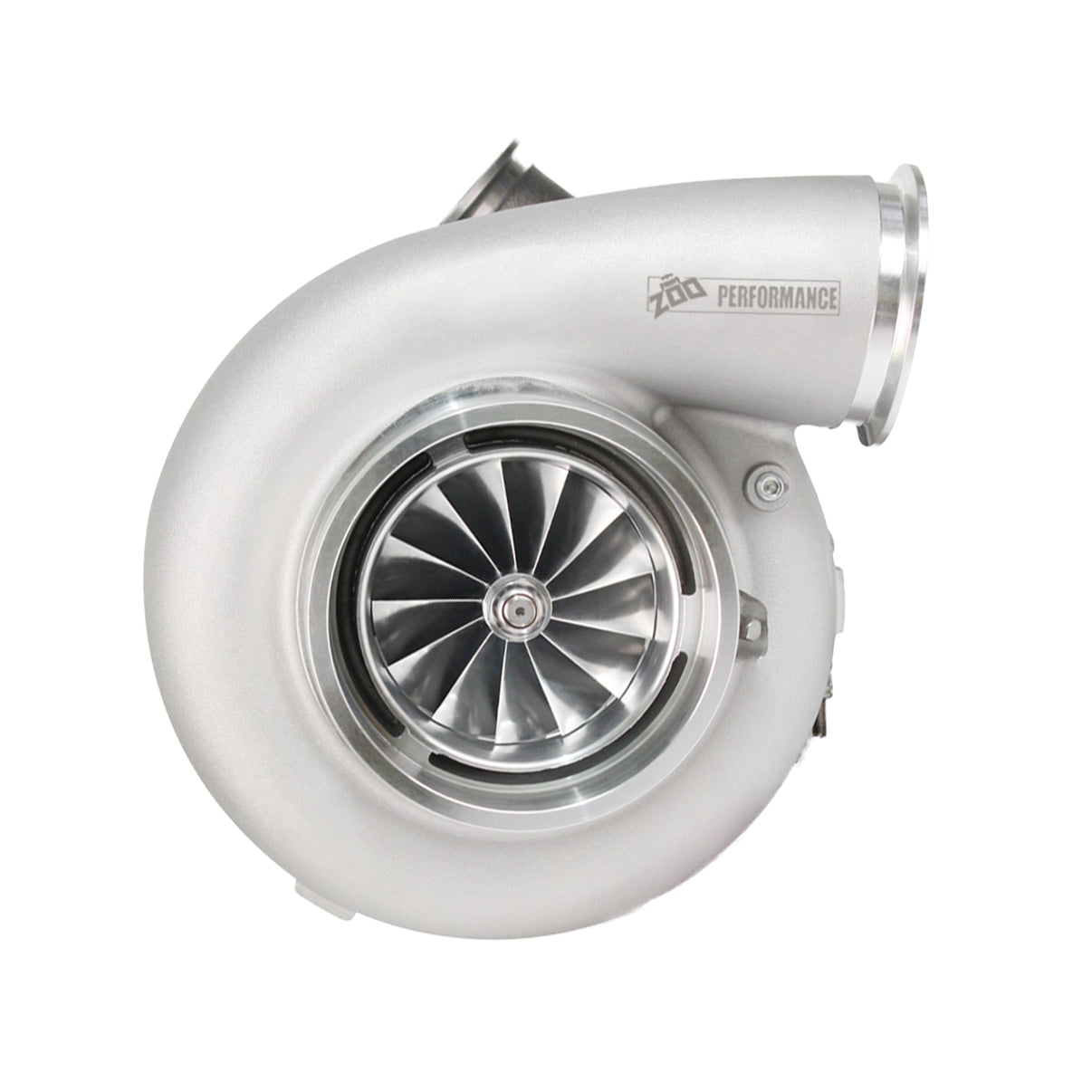

G50-1900 HP Series 88mm Turbo - Stainless Steel Rear Housing

G50-1900 HP Series 88mm Turbo - Stainless Steel Housing

- 1000-1900HP Rating   / 2.5L - 11.0L Displacement
- Dual Ball Bearing
- Ported shroud compressor cover
- Speed sensor port included in compressor cover.
- Inlet Options:

• 1.31 A/R with V-Band Inlet


- Compressor Specifications:

• 88mm Compressor Inducer wheel
• 120mm Compressor Exducer wheel
• 0.88 A/R
• Inlet Size:  6" Hose
• Outlet Size: 4.21" Hose

- Turbine Specifications:

• 99mm Turbine Inducer wheel
• 94mm Turbine Exducer wheel
• Inlet Size:  3.8" Hose
• Outlet Size: 4.5" Hose
• Stainless Steel Turbine Housing

- Fittings:

• Water Ports: N/A
• Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed.
• Oil Outlet: 50.8mm (Centre to Centre) Oil Drain Flange

• Oil Outlet Flange Bolt Size 2 x M8 x 1.25

Our G50 series turbos are manufactured specifically with a combination of the highest quality components and exquisite design with no expense spared! The dual ceramic ball bearing design provides an optimal turbo response and prolongs the lifespan of your turbo.

Our G50 series turbos are fitted with a 13-blade point milled billet aluminium compressor wheel with an aerodynamic tapered tip. The aluminium compressor housing is also fitted with a sensor port. Our compressor wheels are designed with the latest technology maximizing horsepower and boost response and have temperature ratings of up to 200°C. The compressor housings are also fitted with a speed sensor port as well as an anti-surge compressor wheel inlet to increase surge resistance and provides reliable, continuous power.

The turbine wheel is manufactured from Inconel which is a high quality super alloy and does a fantastic job at maintaining strength at high operating temperatures of up to 900°C. Our turbine housings are made from a high grade stainless steel providing ultimate durability in these high performance applications.

Each and every turbo are supplied with all the required parts such as stainless steel polished v-band clamps, flanges, water fittings, turbo drain gasket and NPT 1/4" to -4AN turbo oil feed fitting with 1.6mm restrictor hole. We strongly recommend running an oil pressure regulator with all of our turbos.
