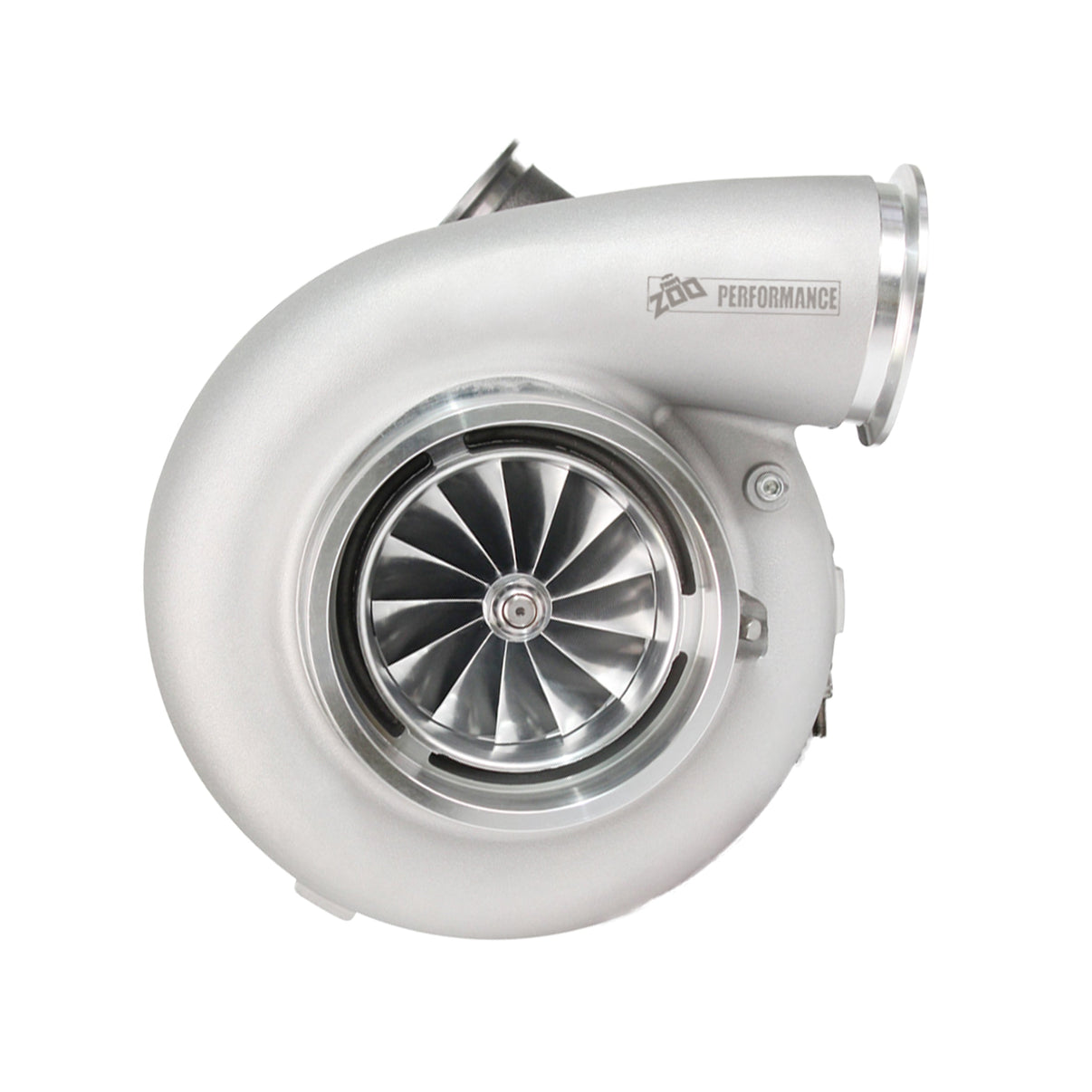

G57-2000HP Series 88mm Turbo

G57-2000 Specifications:

-1400-3000HP Rating   /  3.0L-12.0L Displacement
- Triple Ball Bearing
- Ported shroud compressor cover
- Speed sensor port included in compressor cover.
- Inlet Options:

• 1.24 A/R with V-Band Inlet

• 1.41 A/R with V-Band Inlet

- Compressor Specifications:

• 88mm Compressor Inducer wheel
• 133mm Compressor Exducer wheel
• 0.96 A/R

- Turbine Specifications:

• 118mm Turbine Inducer wheel
• 112mm Turbine Exducer wheel

Our G57 Series turbos are manufactured with a combination of the highest quality components and exquisite design with no expense spared!

The triple ceramic ball bearing design provides an optimal turbo response and prolongs the lifespan of your turbo.  Our 13-blade point milled billet aluminium compressor wheels are designed with the latest technology maximizing horsepower and boost response and have temperature ratings of up to 200°C. The aluminium compressor housings are also fitted with a speed sensor port as well as an anti-surge compressor wheel inlet to increase surge resistance and provides reliable, continuous power.

The turbine wheel is manufactured from Inconel which is a high quality super alloy and does a fantastic job at maintaining strength at high operating temperatures of up to 900°C. Our turbine housings are made from a high grade cast iron providing ultimate durability in these high performance applications. Turbine housings are fitted with a v-band inlet.

Each and every turbo are supplied with all the required parts such as stainless steel polished v-band clamps, flanges, water fittings, turbo drain gasket and NPT 1/4" to -4AN turbo oil feed fitting with 1.6mm restrictor hole. We strongly recommend running an oil pressure regulator with all of our turbos.
